Product description:

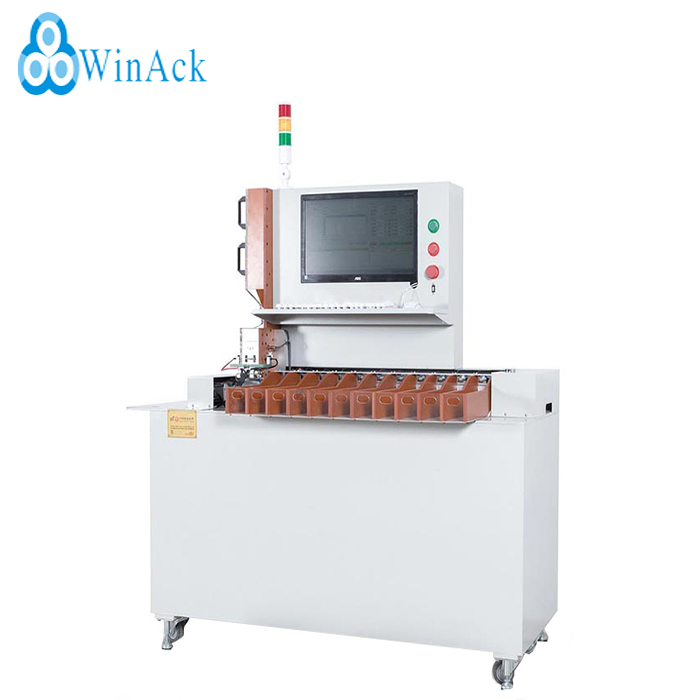

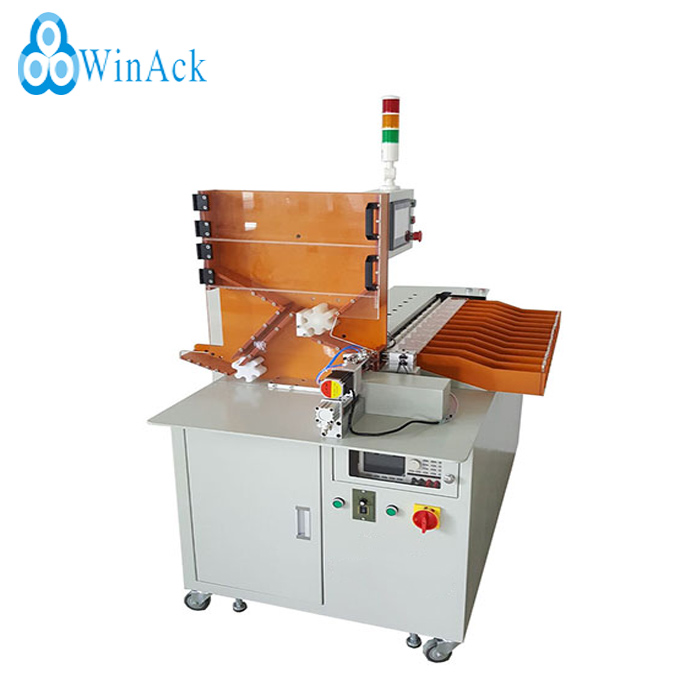

The 18650 battery sorter machine is mainly used to support the process of sorting and matching the cylindrical cells for the battery pack assembly production line.
Scope of application:
The cylindrical battery automatic sorting machine is the must machine for the battery pack assembly production manufacturer for voltage and resistance testing and sorting.
Characteristic:
1. Automatic sorting control, fast sorting speed: 5000pcs/ hour, good stability.
2. The machine has a high- accuracy internal resistance and voltage automatic tester.
3. The test data can be stored on the U disk.
4. The hopper can be put into 450~500pcs battery cells at one time, easy to refill battery cells during the process.
5. The automatic battery sorting machine can be customized to connect with the automatic battery insulation paper cushion machine to save the labor cost.
Device parameters
|
Name |
11 channels Automatic Battery Sorting Machine |
|
Model |
WA-AS-11T |
|
Receiving Channel |
10 OK Channels + 1NG Channel |
|
Voltage supply |
220V / 50Hz (or can be customized) |
|
Power |
1600W |
|
Air pressure |
0.4~0.8Mpa |
|
Internal resistance |
Hioki 3561 / HK 3560 |
|
Measurement of internal resistance |
Range: 0~999.9mΩ Accuracy: ±0.5%rdg Measurement resolving power: 0.1mΩ |
|
Measurement of internal pressure |
Range: 0~6V Accuracy:±0.015%rdg Measurement resolving power: 0.1mV |
|
Production efficiency |
Without code sweeping, about 5000pcs/h |
|
With code sweeping, about 3000pcs/h |
|
|
Control device |
7.5 inch Touch screen + PLC programmer |
|
Sorting speed |
80 PPM |
|
Size(L*M*H) |
1500*930*1390mm |
|
Weight |
About 140KG |
