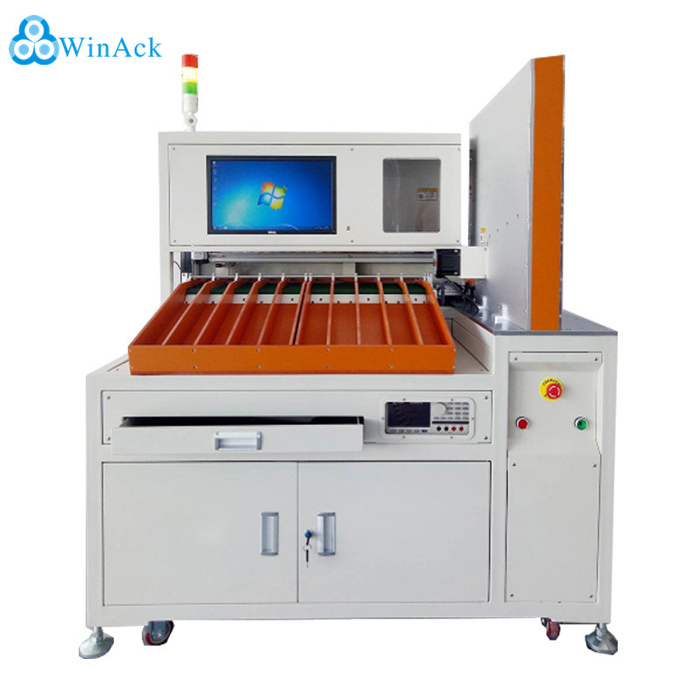

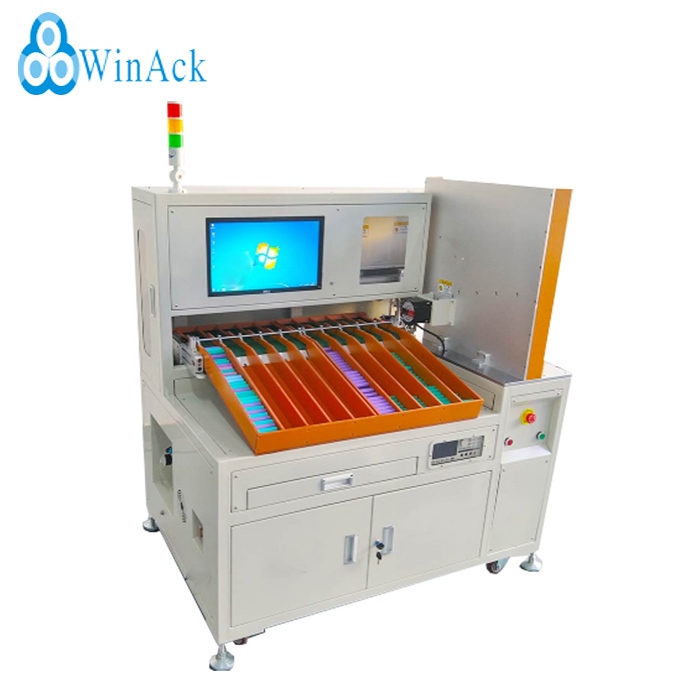

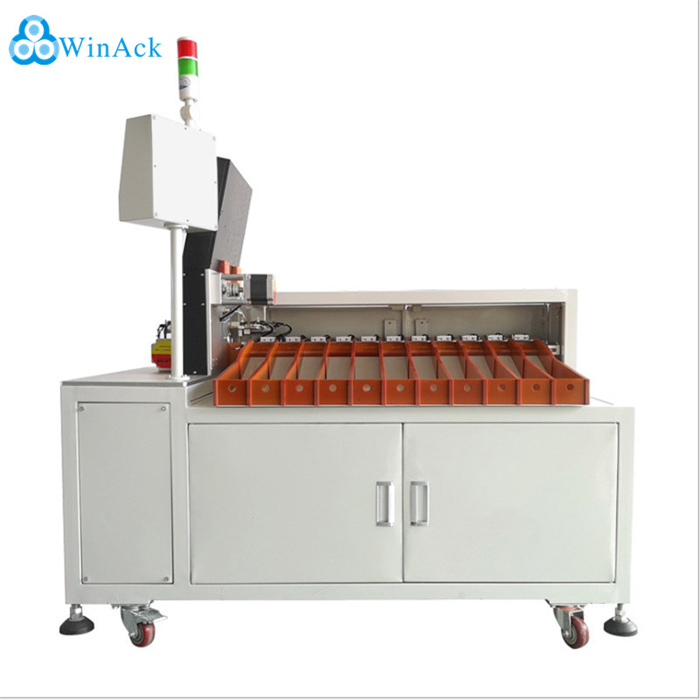

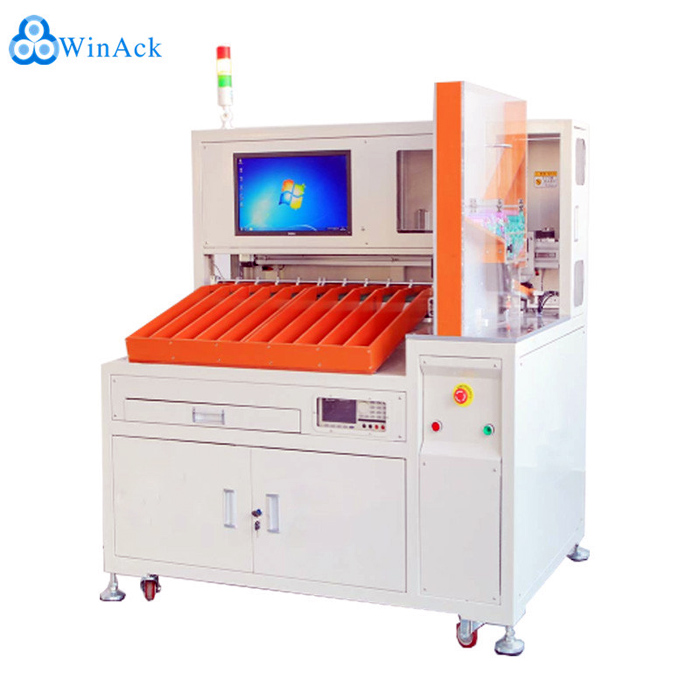

Cylindrical Battery Automatic Sorting Machine

Automatic Battery Voltage Resistance Sorting Machine for 18650 Battery Pack

Model: WA-AS-10C
Sorting channel: 10 channels
Production efficiency: 5000pcs/hour
Warranty: Two years
Description: The battery sorting robot is suitable for the 18650 battery cell sorting, the machine will accurately transfer the battery cell to the specified track according to the set resistance and voltage value
INQUIRY EMAIL

Scope of application:

Standard: 18650 li-ion battery automatic sorting robot for battery pack line

Customizable: 26650 lithium battery cell testing tester machine / battery sorting machine

Customizable: 21700 automatic battery sorter / battery cell voltage and resistance sorting machine for battery pack manufacturer

Characteristic:

1. Fast sorting speed: 5000pcs/ hour, good stability.

2. This product has a high-precision internal resistance and voltage automatic test system.

3. The machine will accurately transfer the battery to the specified track according to the set resistance and voltage values.

4. Equipped with 21-inch display, easy to observe test results, simple operation and high efficiency.

Device parameters

Name	10 channels Automatic Battery Sorting Machine
Model	WA-AS-10C
Voltage supply	220V / 50Hz (or can be customized)
Air pressure	0.5~0.8Mpa
Internal resistance	Hioki 3561 / HK 3561
Measurement of internal resistance	Range: 0~60mΩ Accuracy: ±0.5%rdg Measurement resolving power: 0.1mΩ
Measurement of internal pressure	Range: 0~10V Accuracy:±0.015%rdg Measurement resolving power: 0.1mV
Production efficiency	5000PCS/Hour (Single pad 5 PCS)
Control device	21 inch Monitor
Size(LMH)	12507751680mm
Weight	＜200kg

Equipment configuration
