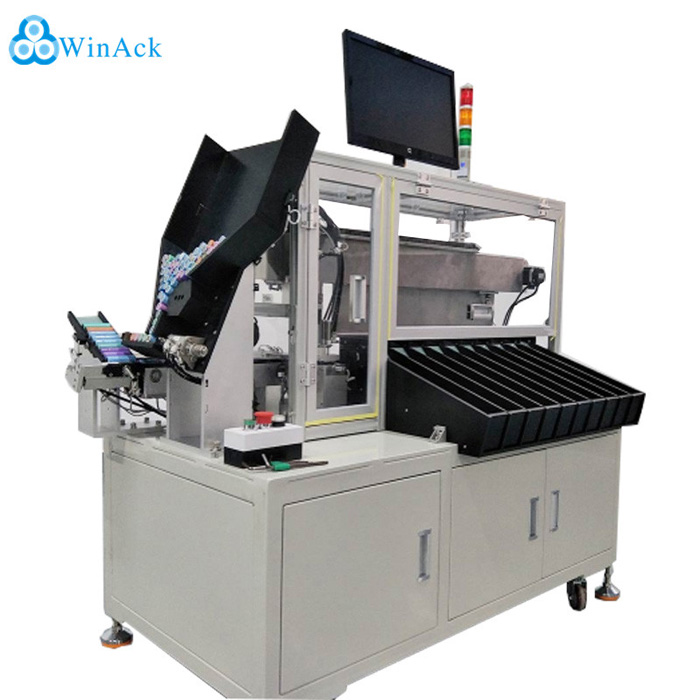

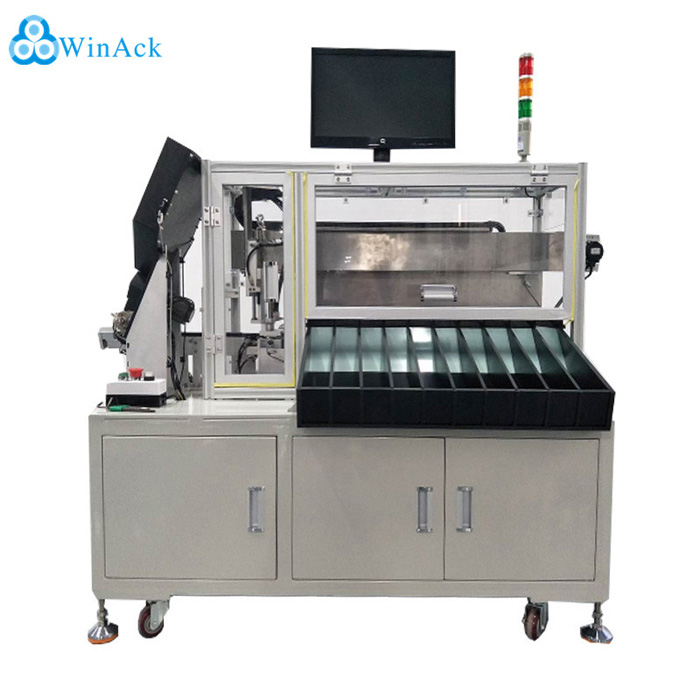

Cylindrical Battery Automatic Sorting Machine

10 Channel Battery Sorting Machine for Battery Pack Assembly line

Model: WA-AS-10D
Sorting channel: 10 channels
Production efficiency: 4500pcs/hour
Warranty: Two years
Description: The automatic 18650 battery sorter machine is suitable for 18650 battery cell testing and sorting before the battery pack assembly.
INQUIRY EMAIL

Scope of application:

Standard: 18650 li-ion battery automatic sorting machine for battery pack assembly line

Customizable: 26650 lithium battery cell testing tester machine / battery sorting machine

Customizable: 32650 automatic battery sorter sorting machine for cylindrical battery

Characteristic:

1. Fast sorting speed: 4500pcs/ hour, good stability.

2. This product has a high-precision internal resistance and voltage automatic test system.

3. The machine will accurately transfer the battery to the specified track according to the set resistance and voltage values.

4. Equipped with 16-inch monitor, easy to observe test results, simple operation and high efficiency.

Device parameters

Name	Ten channels Automatic Battery Sorting Machine
Model	WA-AS-10D
Voltage supply	220V / 50Hz (or can be customized)
Air pressure	0.5~0.8Mpa
Battery Tester	Hioki 3561 / HK 3561
Measurement of internal resistance	Range: 0~60mΩ Accuracy: ±0.5%rdg Measurement resolving power: 0.1mΩ
Measurement of internal pressure	Range: 0~10V Accuracy:±0.015%rdg Measurement resolving power: 0.1mV
Production efficiency	4500PCS/Hour
Control device	16 inch Monitor
Sorting speed	80~95 PPM
Size(LMH)	12607701680mm
Weight	＜200kg
