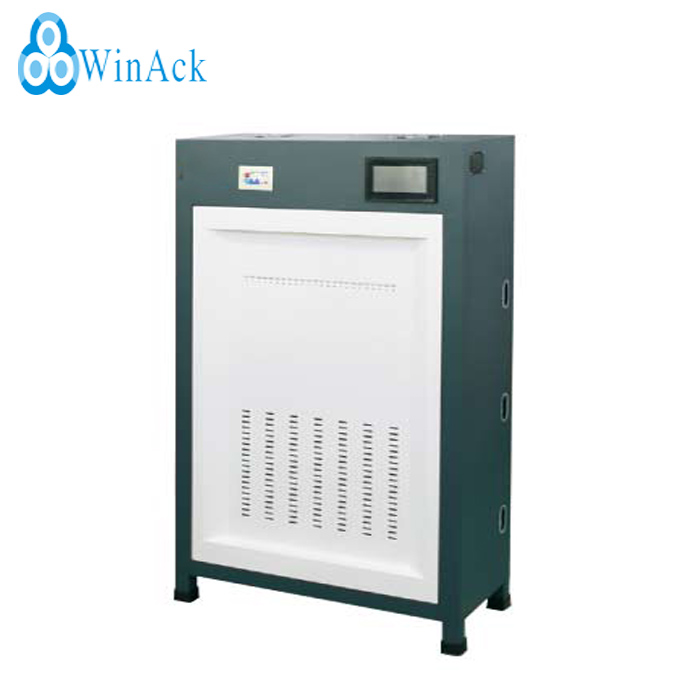

Product description:
The lithium-ion battery cycler is suitable for battery pack charge and discharge test. Using energy feedback technology, during the battery pack cycle life testing process, it can discharge back to the grid.
Scope of application:
The lithium-ion battery cycler is primarily used for the battery pack charge and discharge testing, such as 18650 battery pack, 21700 battery pack, lithium ion polymer battery…
The Lithium-ion Battery Cycler characteristic:
1. Energy efficient power supply systems.
2. Modular design for easy maintenance.
3. Single channel independent control, high test accuracy.
4. Compact and space efficient.
5. Supports offline mode of operation.
6. Adopt energy feedback technology to save energy and reduce emissions.
Equipment parameters
|
Name |
Lithium-ion Battery Cycler (60V 20A) |
|
Model |
WA-BCT-16C60V20A |
|
Channels |
16 Channels （Customizable） |
|
Power supply |
AC 220V ±10% / 50Hz |
|
Power |
≤22KW |
|
Parameters of the channel |
|
|
Voltage measurement range （Customizable） |
6~60V |
|
Resolution : 1mV |
|
|
Voltage range （Customizable） |
Charging: 6~60V |
|
Discharging: 60~6V |
|
|
Voltage accuracy |
± (0.1%RD + 0.1%FS) |
|
Current Range （Customizable） |
Charging: 0.1~20A |
|
Discharging: 0.1~20A |
|
|
Resolution: 1mA |
|
|
Current accuracy |
± (0.1%RD + 0.1%FS) |
|
Parameters of the whole equipment |
|
|
Control method |
Single channel control |
|
Charging mode |
Constant current (CC) |
|
Constant voltage (CV) |
|
|
Constant current and constant voltage |
|
|
Charging cut-off conditions |
Voltage, current, time, capacity |
|
Discharge mode |
Constant current (CC) |
|
Constant current and constant voltage source |
The battery has no impact when switching from constant current to constant voltage. |
|
Discharge cut-off conditions |
Voltage, time, capacity |
|
Protective function |
Safety protection: over current, under current, over voltage, low voltage, over capacity, leakage current, reverse connection protection. |
|
Data protection: With data power-off protection function. |
|
|
Cycle Time |
0~1000Hours |
|
Time accuracy |
1S |
|
Communication Method |
RS485 |
|
Working condition |
Temperature：0～45℃ |
|
Relative humidity≤85% |
|
|
Energy feedback |
Yes |
|
Maximum battery size |
360*120*170mm |
|
Size(L*W*H) |
1050*500*1700mm |
