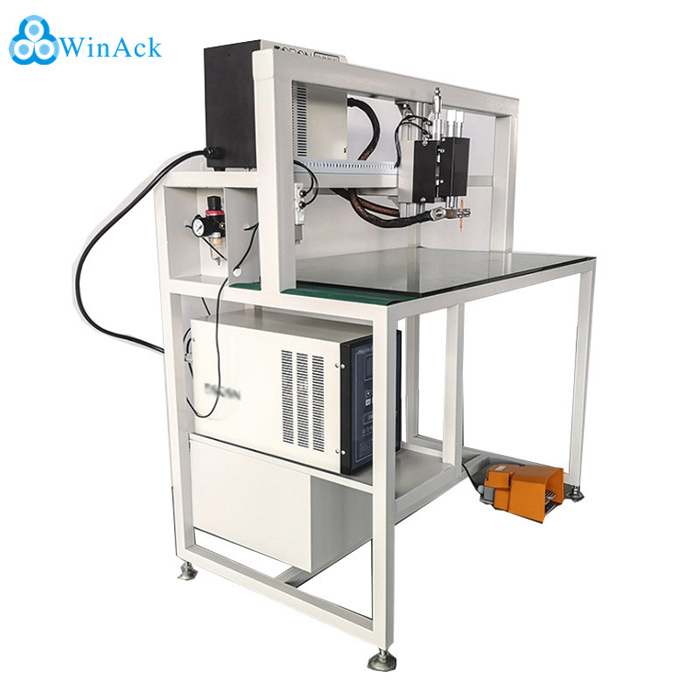

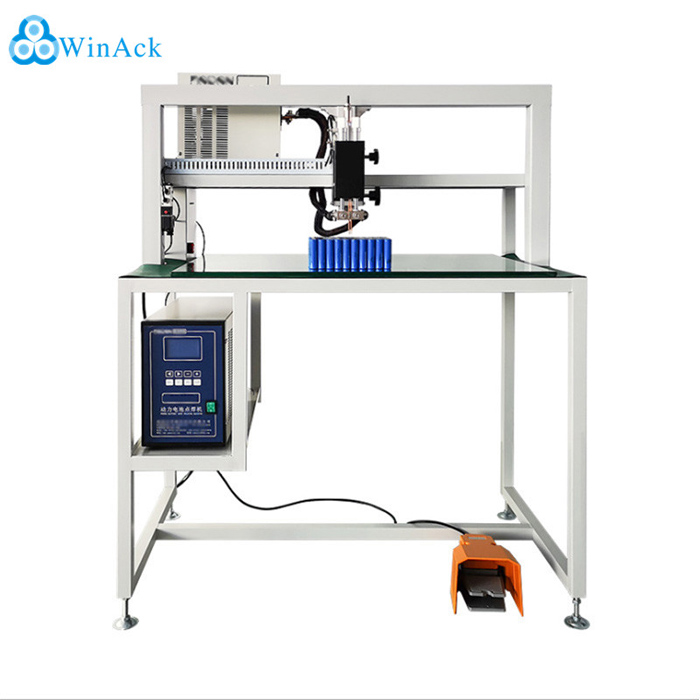

Product description:
The spot welder is suitable for 18650 battery pack spot welding, it is easy to operate, it can weld with high speed and good effect. Supports single spot welding and continuous spot welding modes. It adopts modular design, selects imported components, and is equipped with the company's advanced microcomputer controller. The digital panel is straightforward and convenient.
Scope of application:
8000A pneumatic power battery spot welder for battery pack line, it is suitable for welding 18650, 32650, 21700 battery packs, such as EV battery, electric bicycle battery, street lamp battery.…
8000A Pneumatic power battery spot welder Characteristic:
1. Digital welding parameter setting panel, simple and clear operation, convenient and fast.
2. The welding pulse width is adjustable, the welding spatter is small, and the welding point does not change color.
3. Acousto-optic alarm for abnormal current to prevent false welding.
4. Available welding modes are: single spot welding and continuous spot welding.
Device parameters
|
Name |
Spot Welding Machine for Battery pack production line |
|
Model |
WA-SW-28B |
|
Power supply |
220V±10% / 50/60Hz |
|
Rated power |
350W |
|
Maximum Power of Transformer |
35KVA |
|
Maximum output current |
8000A |
|
Rated capacity |
500J |
|
Welding voltage adjustment |
50~350VDC |
|
Welding time |
1.0ms-20.0ms, accuracy: 0.1ms |
|
Welding pulse frequency |
Secondary |
|

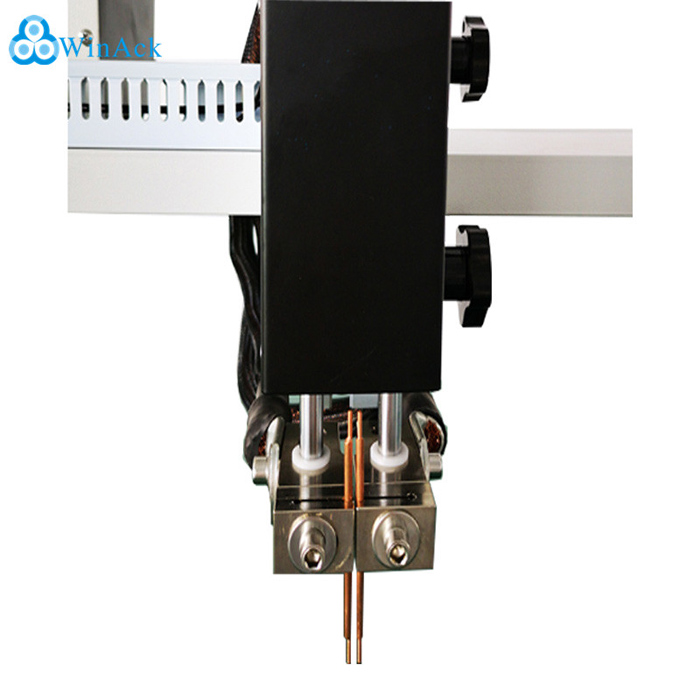

Welding needle configuration |
1.6mm or 3mm or 6mm |
|
Debugging spacing of welding needles |
0-20mm |
|
Welding speed |
0.8~1.2 S/PCS |
|
Thickness of planar nickel sheet |
0.08-0.3mm Nickel-plated steel |
|
Thickness of bump nickel sheet |
0.2-0.5mm Nickel-plated steel |
|
Control mode |
Fixed voltage control |
|
Parameter store |
Ten group |
|
Size(L*W*H) |
1000*600*1310mm |
|
Overall weight |
120KG |
