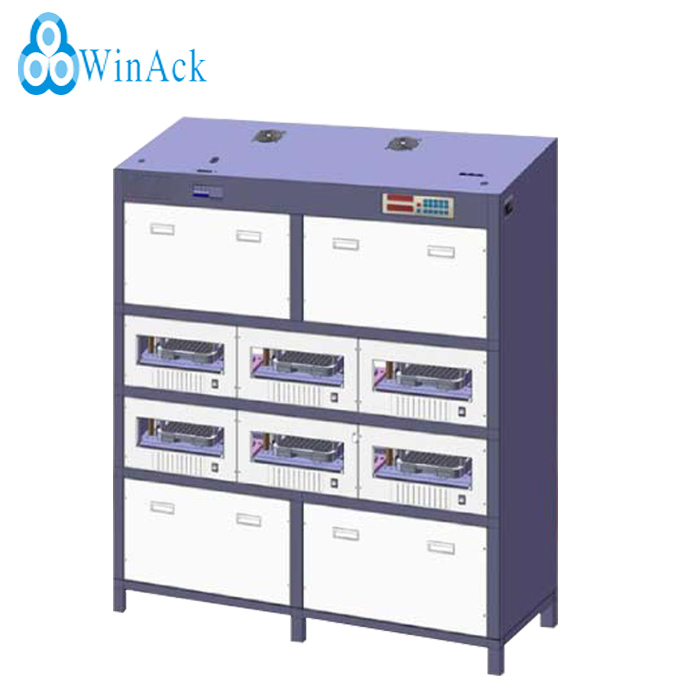

Product description:
The lithium-ion battery cycler system is suitable for 18650 battery cells cycle life test. During the battery cell cycle charge and discharge testing process, it can test the battery capacity.
Therefore, on the one hand, the battery cycle tester can be used as a battery capacity tester to test the capacity of battery cells and perform grading and sorting.
On the other hand, it can be used as a battery cell quality tester to test the actual capacity of the battery cell after a set number of cycles to determine whether it meets the relevant quality standards or specifications.
Scope of application:
The lithium-ion battery cell cycler system is primarily used for the battery cell cycle charge and discharge testing, such as 18650 battery cells.
1. Energy efficient power supply systems.
2. Modular design for easy maintenance.
3. The fixture adopts tray design to improve test efficiency.
4. Low miscarriage of justice for patented thimble designs.
5. Compact and space efficient.
6. Supports offline mode of operation.
Equipment parameters
|
Name |
Battery Cell Cycler System (5V 3A) |
|
Model |
WA-BCT-720C5V3A |
|
Channels |
720 Channels （Customizable） |
|
Battery type |
18650 （Customizable） |
|
Power supply |
AC 220V ±10% / 50Hz |
|
Power |
≤11KW |
|
Parameters of the channel |
|
|
Voltage measurement range （Customizable） |
0 ~5V |
|
Resolution : 1mv |
|
|
Voltage range （Customizable） |
Charging: 0V ~4.5V |
|
Discharging: 4.5V ~2V |
|
|
Voltage accuracy |
± (0.1%RD + 0.1%FS) |
|
Current Range （Customizable） |
Charging: 0.01A - 3A |
|
Discharging: 0.01A - 3A |
|
|
Resolution: 1mA |
|
|
Current accuracy |
± (0.1%RD + 0.1%FS) |
|
Parameters of the whole equipment |
|
|
Control method |
Overall cabinet control |
|
Charging mode |
Constant current (CC) |
|
Constant voltage (CV) |
|
|
Constant current and constant voltage |
|
|
Charging cut-off conditions |
Voltage, current, time, capacity |
|
Discharge mode |
Constant current (CC) |
|
Constant current and constant voltage source |
The battery has no impact when switching from constant current to constant voltage. |
|
Discharge cut-off conditions |
Voltage, time, capacity |
|
Protective function |
Safety protection: over current, under current, over voltage, low voltage, over capacity, leakage current, reverse connection protection. |
|
Data protection: With data power-off protection function. |
|
|
Process settings |
32 working steps and 255 cycles. |
|
Sampling inspection cycle |
Whole cabinet: ≤8S |
|
Single channel: ≤0.01S |
|
|
Sorting method |
Various conditions (capacity, time, open circuit voltage, discharge platform, etc.) are sorted. |
|
Communication Method |
Ethernet |
|
Qualification rate of products |
≥98% |
|
Equipment operation rate |
≥95% |
|
Fixture form |
The fixture adopts tray design to improve test efficiency. |
|
Heat Dissipation Method |
Air-cooled, using low-noise axial fan exhaust cooling. |
|
Working condition |
Temperature：0～45℃ |
|
Relative humidity≤85% |
|
|
Frame color |
Cold-rolled steel, baked enamel finish |
|
Size(L*W*H) |
1700*600*1800mm |
