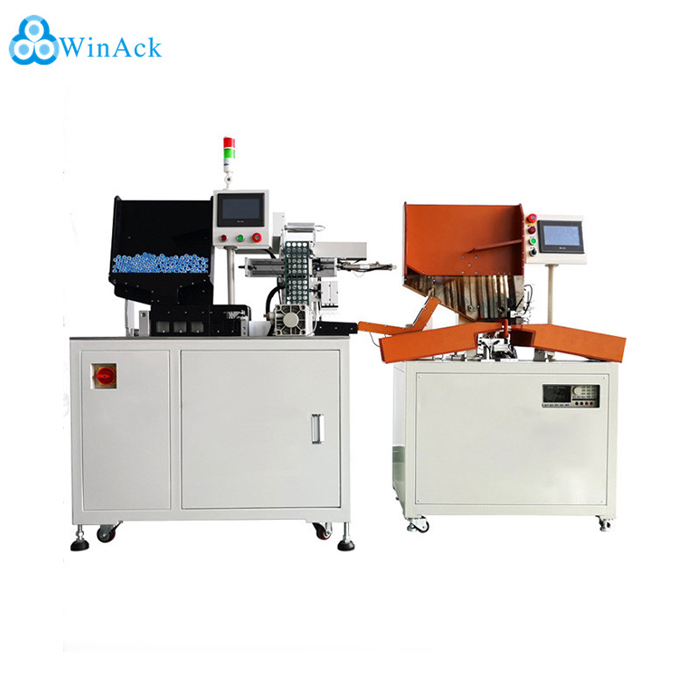

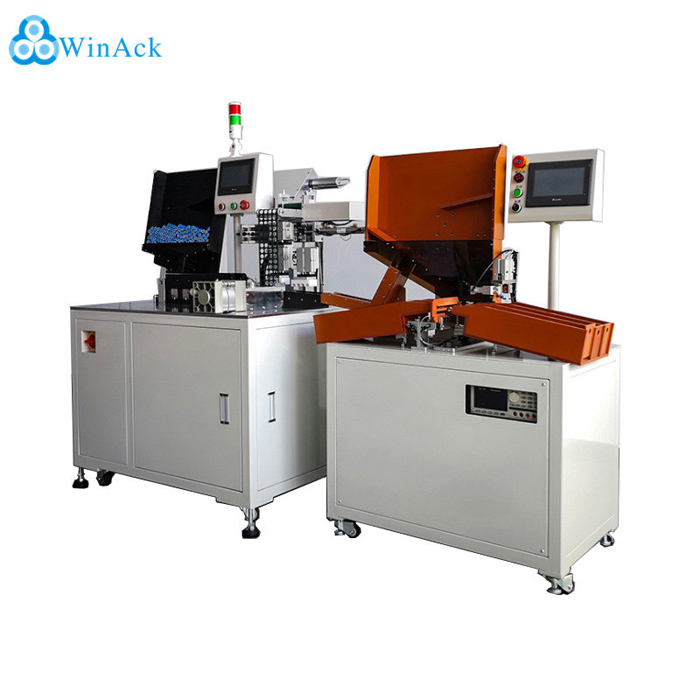

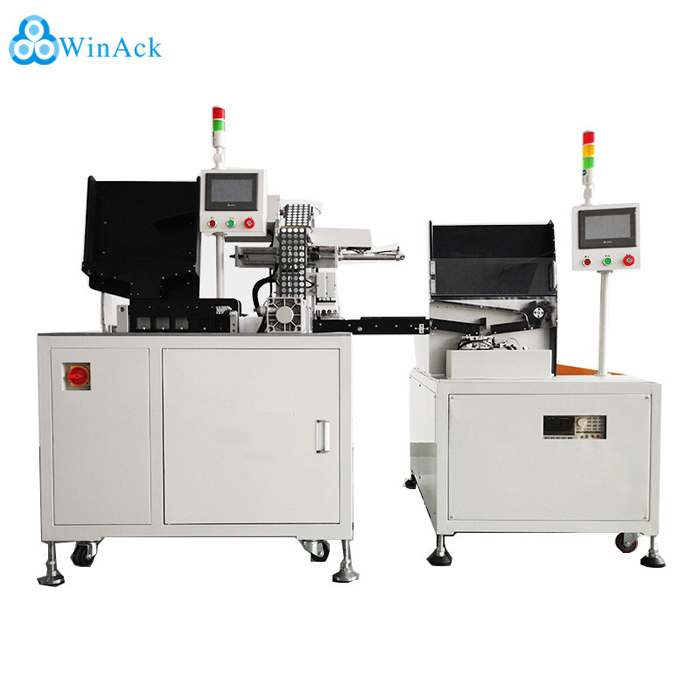

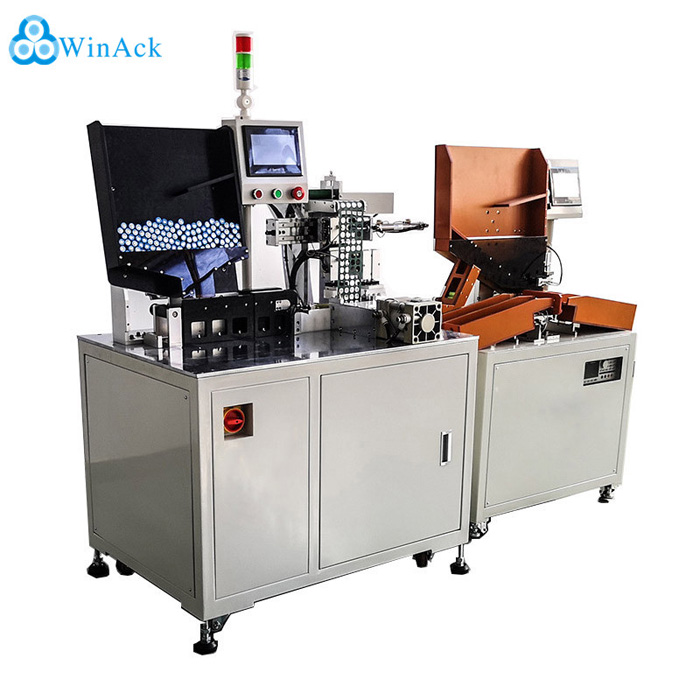

Battery Sorting and Paper Sticking Machine 2 in 1

Donut Label Sticking Machine Connecting With Cylindrical Battery Sorting Machine for Battery Pack Assembly

Model: WA-SS-45C
Sorting channel: 5 channels
Production efficiency: 3800pcs/hour
Warranty: Two years
Description: The product is suitable for automatic cylindrical battery sorting and insulation paper sticking; this is a good machine for the 18650 battery pack assembly production line.
INQUIRY EMAIL

Scope of application:

Customizable: 26650 battery cells sorting and insulation paper sticking machine 2 in 1

Customizable: Battery making machine 2 in 1 for 21700 lithium battery cells sorting and insulation paper sticking

Customizable: 2 in 1 32650 Cells Sorting Machine & Insulation Paper Sticking Machine

Characteristic:

1. Fast speed: 3800pcs/ hour, high stability.

2. This product has a high-precision internal resistance and voltage automatic test system.

3. The machine will accurately transfer the battery to the specified track according to the set resistance and voltage values.

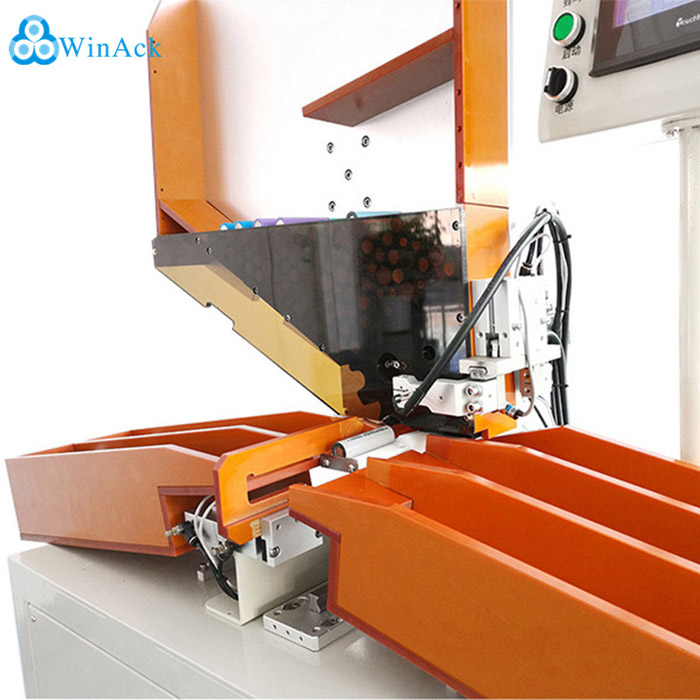

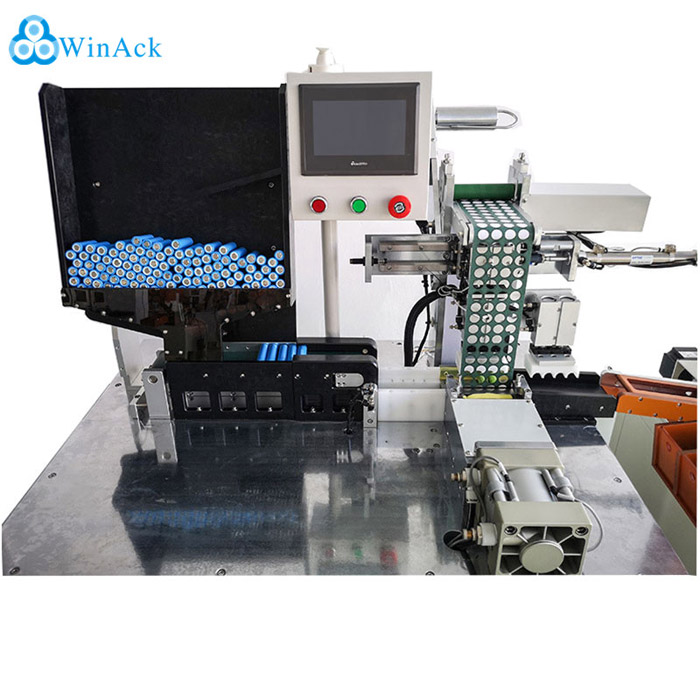

4. The hopper can be put into 500pcs at one time, with high production efficiency and easy operation.

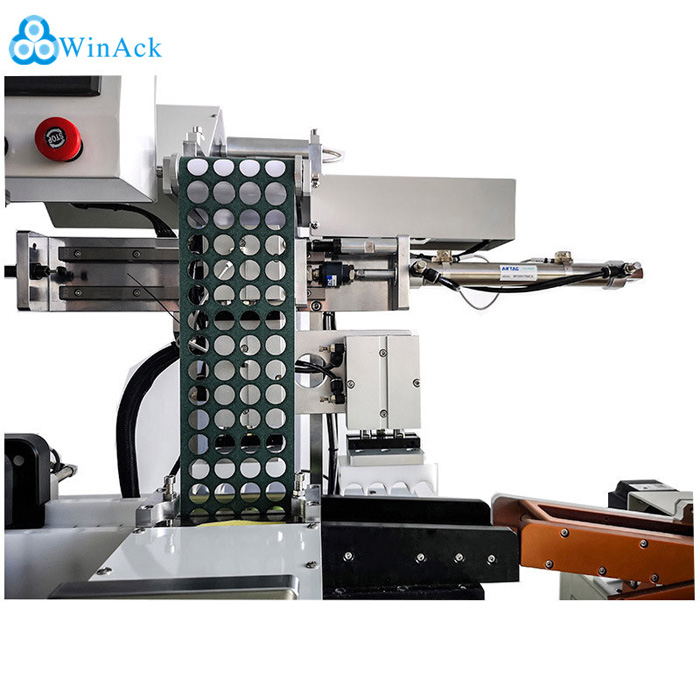

5. The paper fits firmly and does not affect automatic spot welding.

6. During the stamping process, the mold does not stick to the viscous gel.

Device parameters

Name	Five channels Automatic Battery Sorting & Paper Sticking Machine
Model	WA-SS-45C
Voltage supply	220V / 50Hz (or can be customized)
Air pressure	0.5~0.8Mpa
Internal resistance	Hioki 3561 / HK 3561
Measurement of internal resistance	Range: 0~60mΩ Accuracy: ±0.5%rdg Measurement resolving power: 0.1mΩ
Measurement of internal pressure	Range: 0~10V Accuracy:±0.015%rdg Measurement resolving power: 0.1mV
Size(LMH)	20009501500mm
Production efficiency	3800PCS/Hour (Single pad 4 PCS)
Receiving channel	5 channels, 4 sorting and matching channel,1 unqualified channel
Control device	7 inch Touch screen
