Battery Test Equipment

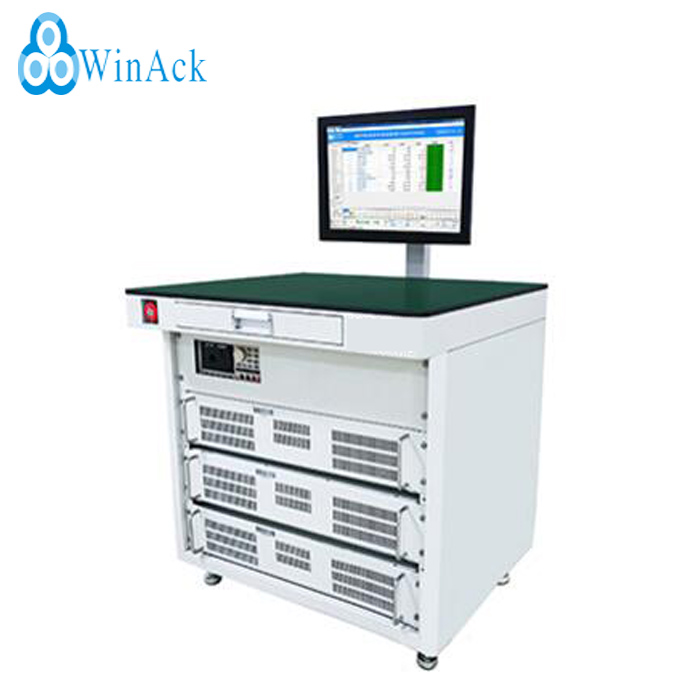

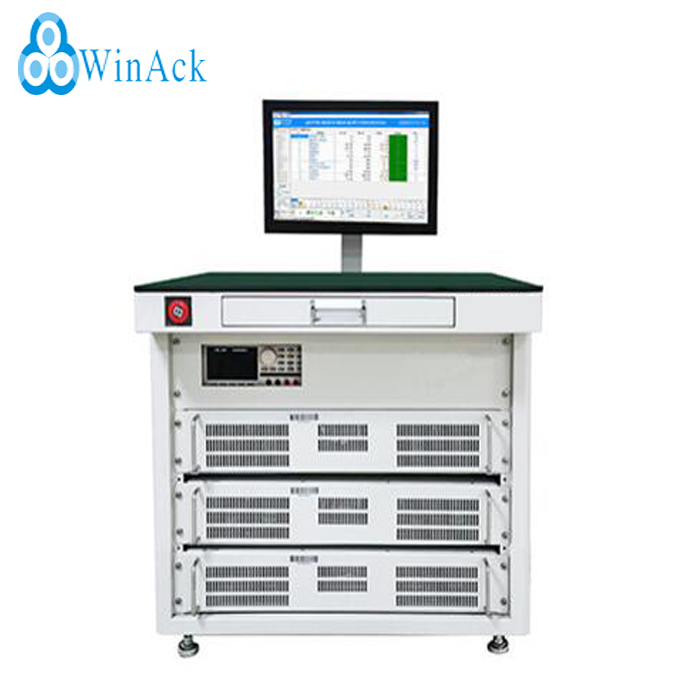

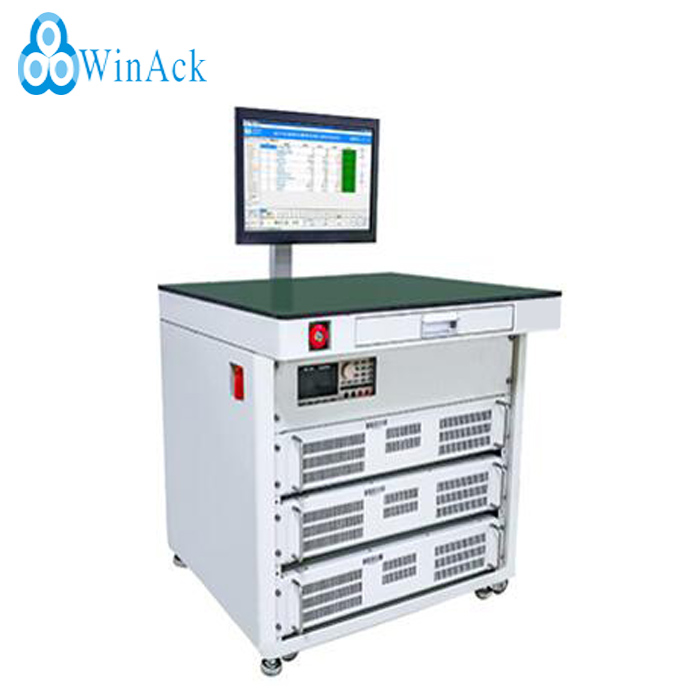

Battery Pack Testing Equipment (100V 300A)

Battery Pack Testing Equipment (100V 300A)

Model: WA-CT-1030
Voltage test: 12V-85V ±5mV
Current test: 1A~99A ±0.1A (customizable)
Warranty: Two years
Description: Xiamen WinAck is a professional manufacturer and supplier of battery test equipment. Since its establishment in 2011, all kinds of battery testers have been sold from China to all over the world.
INQUIRY EMAIL

Product description:

The battery pack testing equipment is a professional equipment for performing various performance tests on finished lithium battery packs. The tester can quickly detect various conventional performance indicators of lithium battery packs, such as: open circuit voltage, charging performance, discharge performance, load characteristics, AC internal resistance, DC internal resistance, overcurrent protection function, short circuit protection function, battery pack single-string maximum voltage difference, single-string internal resistance of battery pack. . .

Scope of application:

The battery pack testing equipment for finished lithium battery pack is suitable for E-bike battery, electric motorcycle battery, finished batteries for electric vehicles, backup power batteries, motorcycle battery, EV battery…

Characteristic:

1. A single equipment can evaluate the performance of the battery pack and has a comprehensive detection function.

2. PC control, program operation, test parameter setting is very simple, after the test result is out, it will automatically judge whether it is qualified or not.

3. The test data is automatically stored in the PC and can be exported for easy traceability.

Device parameters

Name	Battery Pack Testing Equipment (100V 300A)
Model	WA-CT-1030
Power supply	AC220V / 50Hz
Voltage test	12V-85V (±5mV)
Current test	1A~99A ±0.1A (customizable)
Load voltage test	12V~85V (±5mV)
Load current test	1A~99A (±0.1A )
Maximum test voltage	85V ±5mV (customizable)
Maximum discharge voltage	85V ±0.1V (customizable)
DC internal resistance test current	1A~10A ( ±0.1A)
DC internal resistance test	10~999 mΩ (±1 mΩ)
Maximum over current	99V ±0.1A (customizable)
Maximum charging current	10A ±0.1A
Minimum charging voltage	12V ±5mV
Minimum charging current	1A ±0.1A
Operating temperature	0~50℃
Size(LWH)	11001200600mm
Overall weight	About 168KG

Test case

	Test items	Unit	Set minimum	Set maximum	Measured value	OK or NG
1	No-load voltage	V	39.00	55.90	43.684	OK
2	Charging voltage	V	39.00	55.90	44.852	OK
3	Charging current	A	6.40	9.60	8.00	OK
4	Charging △ V	V	0.01	20.00	1.17	OK
5	Charging DCR	mΩ	20	1000	146.3	OK
6	ACR	mΩ	20	200	51.0	OK
7	Discharging DCR	mΩ	20	200	98.4	OK
8	Discharge voltage	V	39.00	55.90	43.124	OK
9	Discharge current	A	4.80	7.20	5.66	OK
10	Discharging △ V	V	0.10	20.00	0.575	OK
11	Overcurrent protection current	A	45.00	80.00	56.68	OK
12	Overcurrent recovery voltage	V	39.00	55.90	43.630	OK
13	Short circuit protection time	μs	100	1500	665	OK
14	Short-circuit recovery voltage	V	39.00	55.90	43.678	OK
15	Single-string maximum voltage difference	mV	0	80	19	OK
16	Single-string maximum internal resistance difference	mΩ	0	50	4.60	OK
