Scope of application:
It is widely used for small motor and electrical insulation slot liner, gasket and turn to turn and layer insulation, liner insulation, transformer insulation, and other electrical insulation with temperatures requirement not exceeding 120℃. It is particularly resistant to acid and alkali corrosion, tear resistance and abrasion resistance.
Characteristic:
1. Excellent physical, mechanical and dielectric properties.
2. Withstand all kinds of machining, such as die cutting or precision stamping.

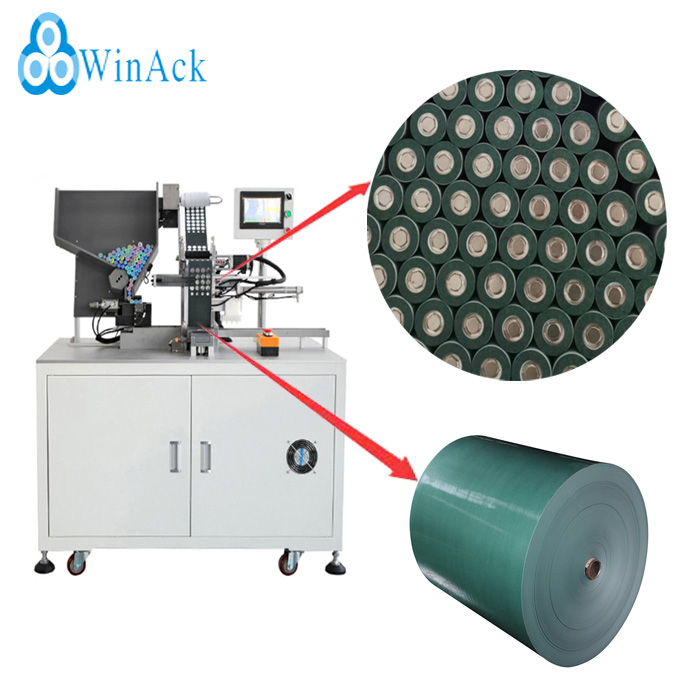

3. Easy to peel and paste, the paper fits firmly and does not affect automatic spot welding.
4. During the stamping process, the mold does not stick to the viscous gel.
5. Good insulation, flexibility, water resistance, wear resistance, oil resistance, aging resistance, good gap material.

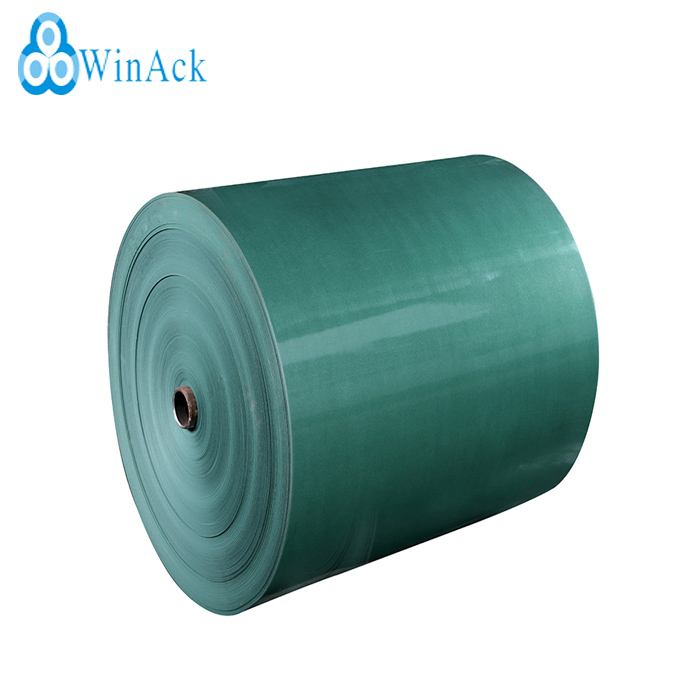

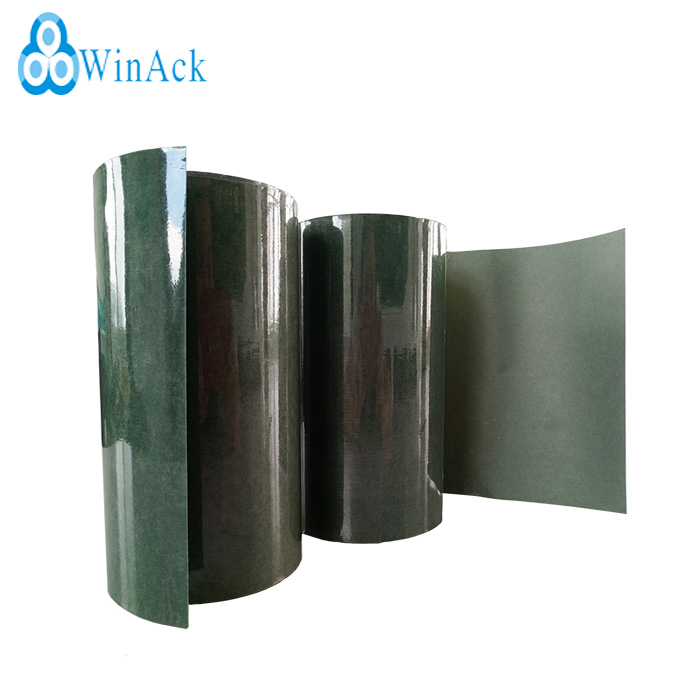

Device parameters
|
Name |
Insulation Spacer for Battery Pack |
|
Model |
WA-IS-03 |
|
Type |
Insulation paper (Single Adhesive) |
|
Color |
Dark green |
|
Material |
Vulcanized fiber or Barley paper |
|
Thickness |
0.3 mm (or can be customized) |
|
Width |
100 mm (or can be customized) |
|
Length |
100 m/Roll (or can be customized) |
|
Application |
Low Voltage |
|
Temperature resistance |
120℃ |
|
Insulation class |
E |
|
Technical specifications |
IEC 60641 |
|
Production mode |
Die cutting or precision stamping |
|
Feature |
High Mechanical Property and dielectric property |
