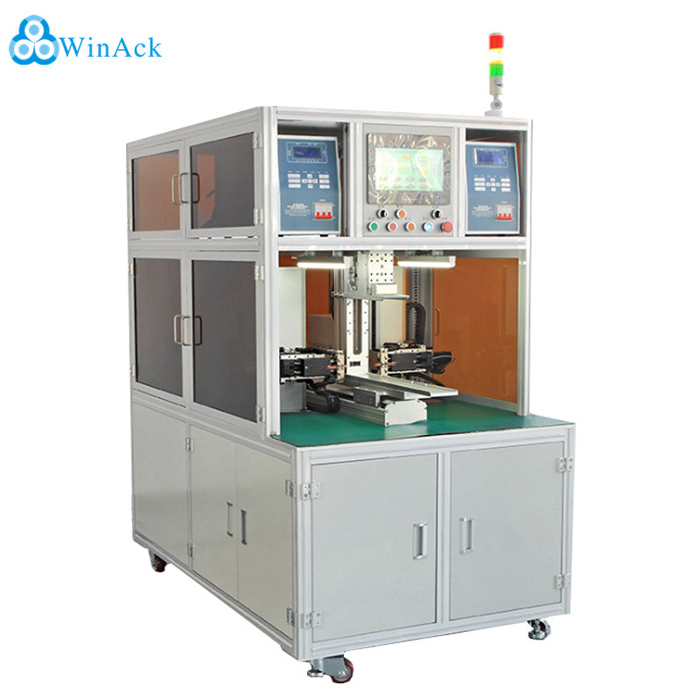

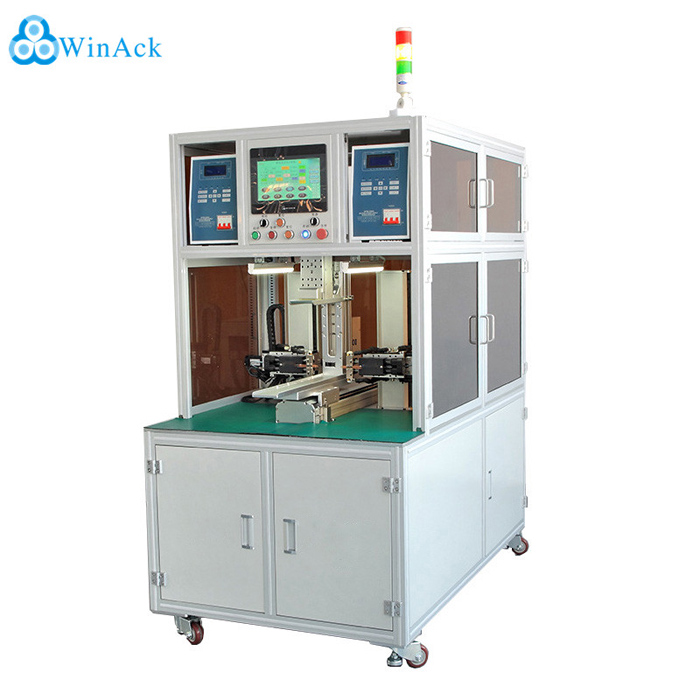

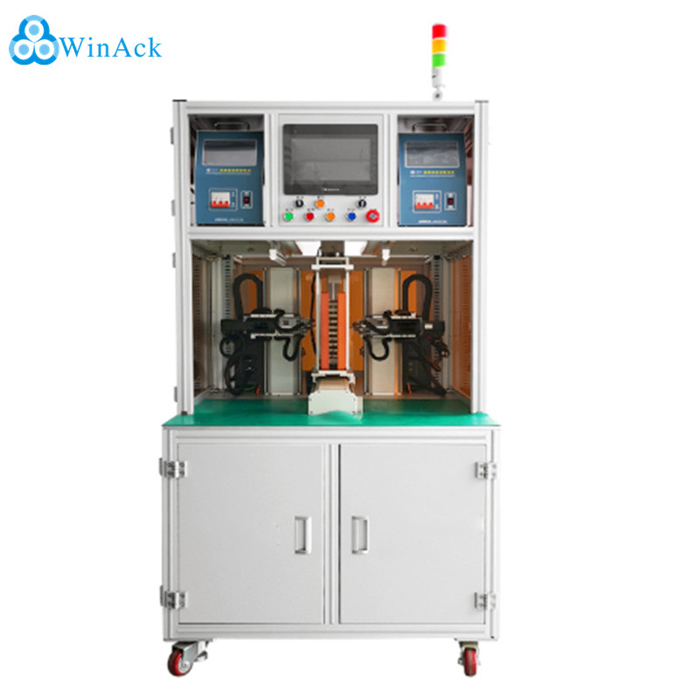

Product description:

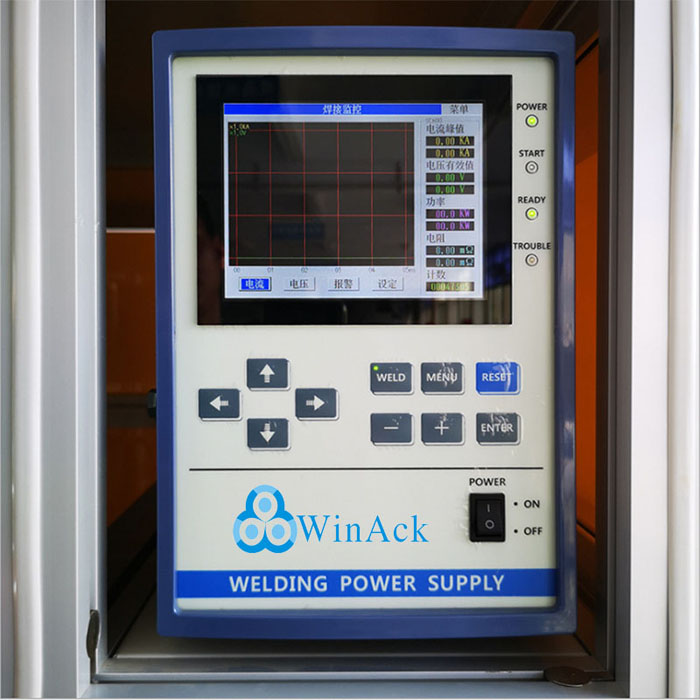

The machine is suitable for fully automatic 18650 battery spot welding machine for 18650 battery pack double-sided welding, the highly automated human-machine interface makes it easy to operate. Our own welding current monitoring system can monitor the welding current in real time, effectively solving the problems of virtual welding and missing welding. Through manual loading and simple settings, it can weld both sides together with high speed and good effect, and to ensure that the welding tension band or nickel between the battery and the nickel strips is greater than 30N.
Scope of application:

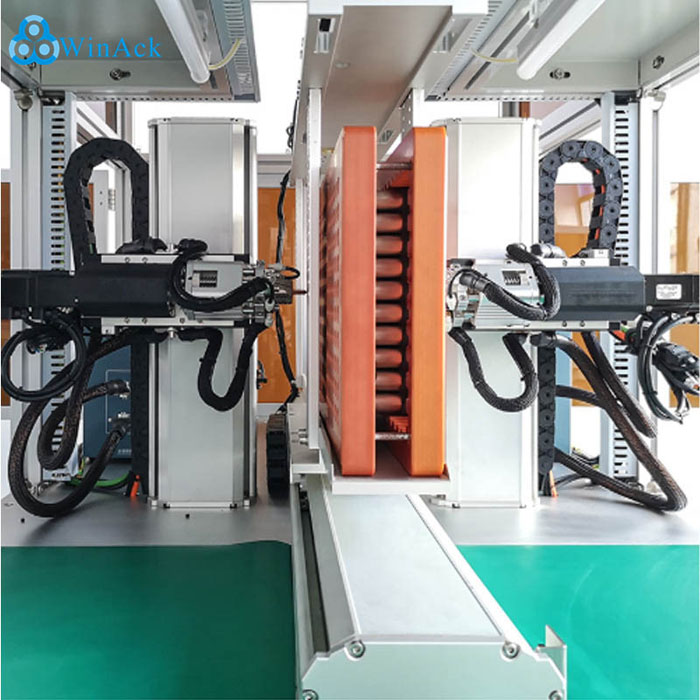

Fully automatic 18650 battery spot welding machine for 18650 battery pack double-sided welding, it is suitable for electric bicycle batteries, power battery and energy storage battery…
Automatic Cylindrical Cells Double Sides Spot Welding Machine Characteristic:
1. One key calibration function can be used to calibrate the overall deviation of the solder joint. This function can be used to correct spot position deviations due to replacement of welding needles or other reasons.
2. The spot welding is more efficient, and the double-sides spot welder can reach 3800 pcs/hour.
3. Support breakpoint startup, automatic startup and manual startup mode conversion.
4. The core accessories are imported fromJapanandTaiwan. The accuracy, stability and service life of the whole machine are more than twice that of other domestic accessories.

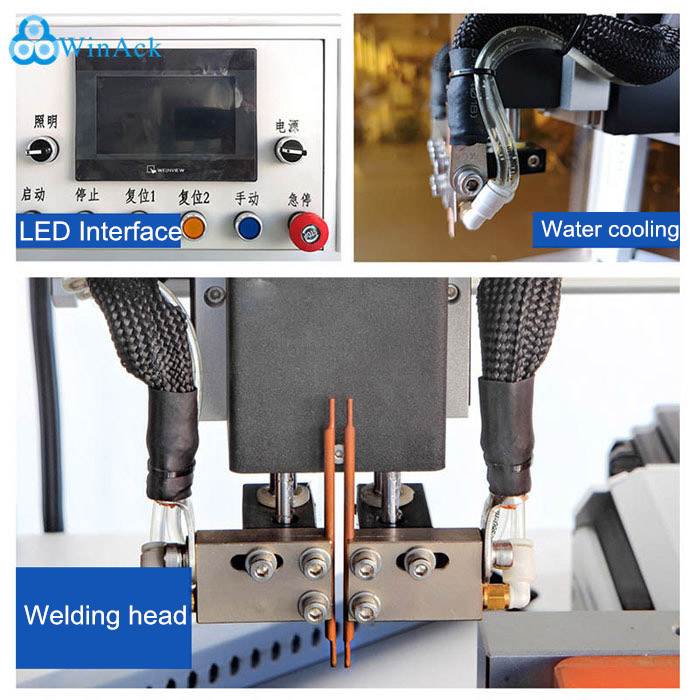

5. Welding needle compensation function Water-cooled heat dissipation system, reducing the loss of welding needles.
6. Welding needle replacement forecast reminder.
7. We can provide different welding machines according to the different requirements to effectively meet the needs of customers.
Device parameters
Name |
Double-sides Automatic Battery Spot Welding Machine |
Model |
WA-SW-200R |
Power supply |
220V±10% / 50Hz±10% |
Power |
<2500 W |
Thickness of flat welding nickel sheet |
0.12-0.3MM |
Welding speed of nickel sheet |
0.7-0.8S/PCS |
Production efficiency |
3800PCS/Hour |
Y-axis travel |
560MM (Customizable) |
Z-axis travel |
340MM (Customizable) |
Spring pressure adjustment |
1.0-0.5KG |
Welding source |
Need to be allocated |
Operating system |
Embedded motion control system & human-machine interface |
Size(L*W*H) |
1500*900*1690mm |
Equipment configuration
Serial number |
Spare parts |
Brand |
1 |
Servo motor |
Panasonic |
2 |
Stepper motor |
Leadshine |
3 |
Solenoid valve |
SMC / Airtac |
4 |
Support base |
NSK |
5 |
Linear guide rail |
TouchWin |
6 |
Power Supply |
MEAN WELL |
7 |
Inductorium |
OMRON / SUNX |
8 |
Pushbutton switches and indicators |
GONCON |
9 |
Electric relay |
DELIXI ELECTRIC |
