Scope of application:

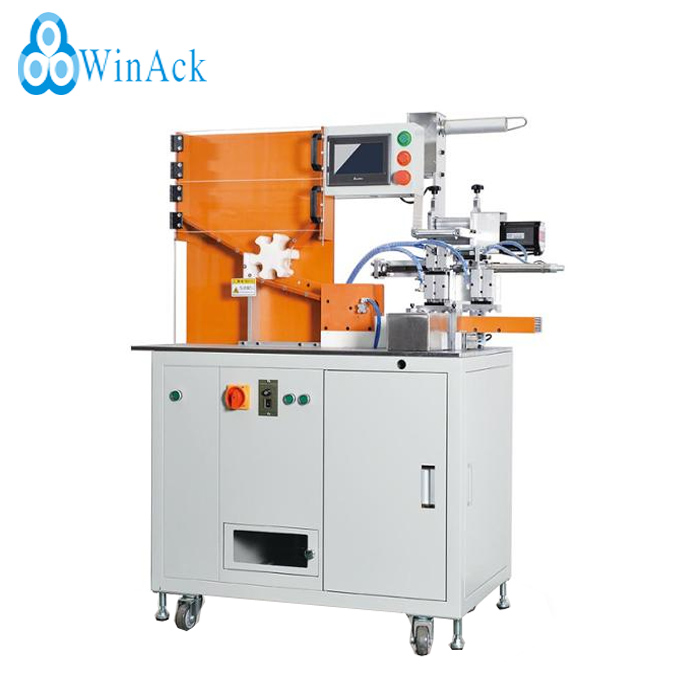

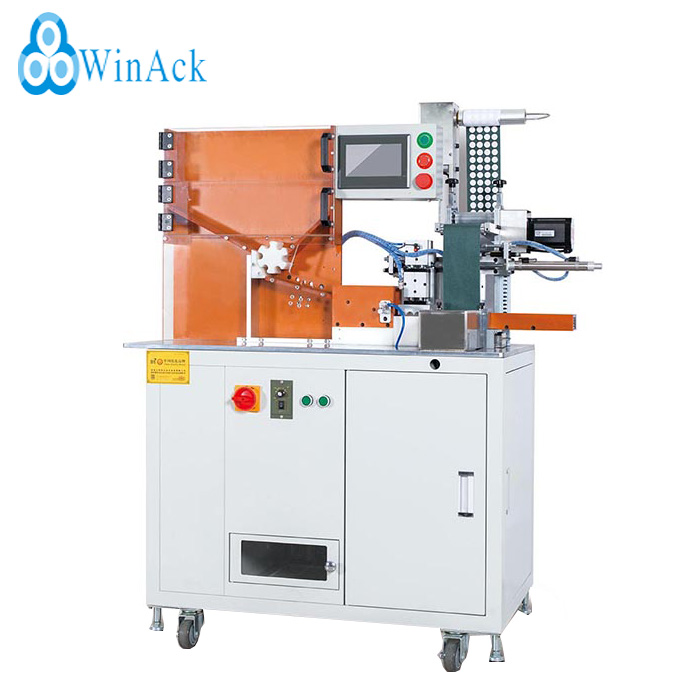

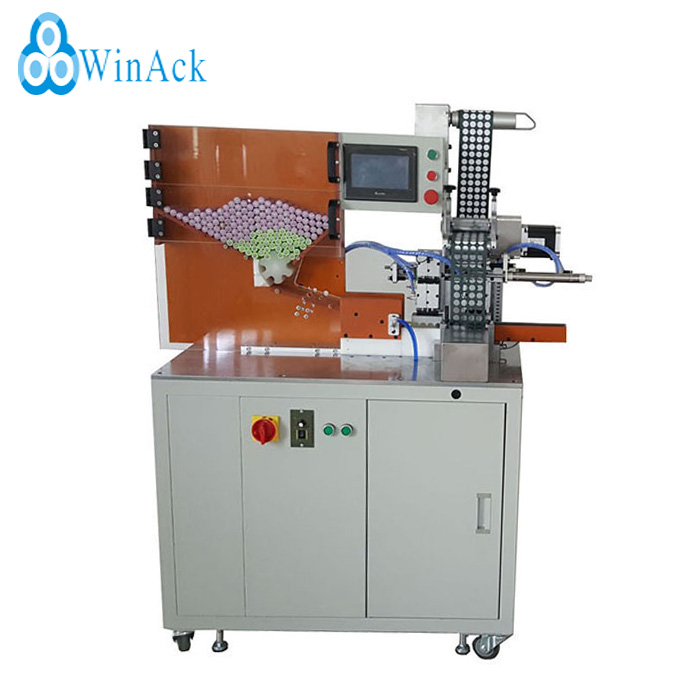

Standard: 18650 cylindrical lithium battery insulation paper sticking machine
Customizable: 26650 lithium cells labeling insulation paper pasting machine
Customizable: 21700 li-ion battery pack assembly insulation paper sticker
Customizable: 32650 lithium battery protected positive pole insulating paper machine
Characteristic:
1. Stick 4500pcs/ hour, consistent and durable, good stability.
2. This machine has an automatic fault alarm function.
3. The paper fits firmly and does not affect automatic spot welding.
4. Easy to program, adjust and operate to suit novices.
5. Efficient and automatic, saving labor costs.
6. The hopper can be put into 450~500pcs at one time, with high production efficiency and easy operation.
Device parameters
|
Name |
|
|
Model |
WA-IC-45 |
|
Voltage supply |
220V / 50Hz (or can be customized) |
|
Input power |
1600W |
|
Air pressure |
0.4~0.8Mpa |
|
Surface mat material |
Barley paper or PVC |
|
Material specification |
Thickness: 0.1~0.3MM Maximum breadth: 100MM |
|
Using hopper feed |
450~500 PCS cells / one-time |
|
Production efficiency |
4500pcs/hour |
|
Punching Pad Power |
0.4 KW variable frequency motor |
|
Control device |
7.5 inch Touch screen, PLC programming unit and stepper motor |
|
Size(L*W*H) |
1420*950*1620mm |
|
Weight |
About 180KG |
